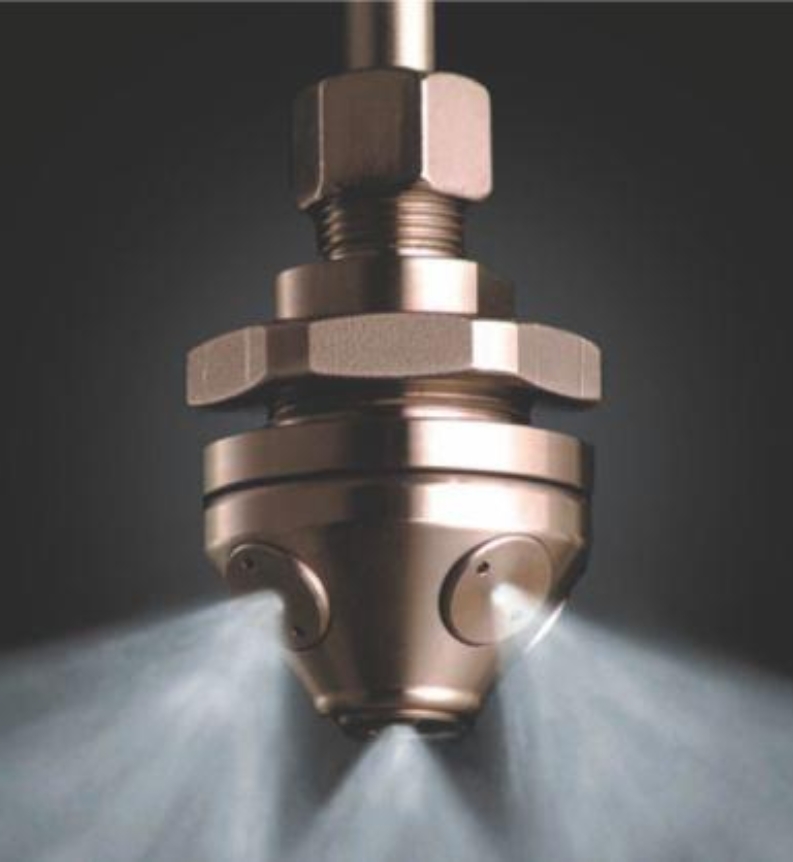

WATER MIST SYSTEM

Water Mist System – Advanced Fire Protection

Our Water Mist System is an innovative and ecological fire suppression solution designed for high efficiency and minimal environmental impact. It provides rapid fire control with minimal water usage, making it ideal for protecting both equipment and occupied spaces.

Key Benefits:

Eco-Friendly – Uses demineralized water, safe for the environment.
Safe & Reliable – Protects sensitive equipment and occupied areas without risk.
Minimal Water Damage – Uses fine mist technology to control fires effectively.
Highly Efficient – Ideal for flammable liquid fires and industrial applications.
Electrically Non-Conductive – Ensures safety in areas with electrical components.
Rapid Cooling Effect – Quickly reduces temperature, preventing fire re-ignition.
Cost-Effective – Low consumption of extinguishing agent and operational costs.
Flexible Installation – Available as an independent system or with pumping equipment.

Applications:

Our Water Mist System is designed for diverse environments, including:
Flammable Liquid Fires – Safe and effective suppression.
Industrial Facilities – Wet chemical and industrial fires.
Turbine & Generator Cabins – Protects critical machinery.
Transformer Rooms & Cable Galleries – Ensures electrical safety.
Road Tunnels & Escalators – Fire protection in public and industrial spaces.
Valuable Material Warehouses – Preserves assets with minimal damage.

FIRE SPRINKLER SYSTEM

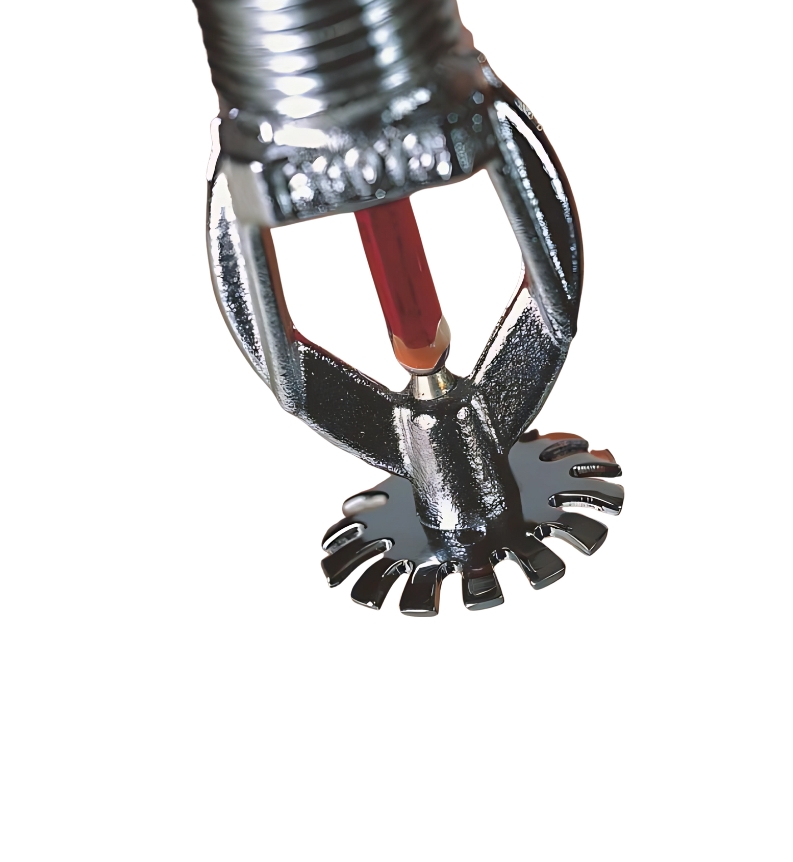

Fire Sprinkler System – Reliable & Automated Fire Protection

For fire protection purposes, an integrated systems of underground and overhead piping designed in accordance with fire protection engineering standards. The installation includes at least one automatic water supply that supplies one or more systems. The portion of the sprinkler system above ground is a network of specially sized or hydraulically designed piping installed in a building, structure, or area, generally overhead, and to which sprinklers are attached in a systematic pattern. Eanc system has a control valve located in the system riser or its supply piping. The system is usually activated by heat from a fire and discharges water over the fire area

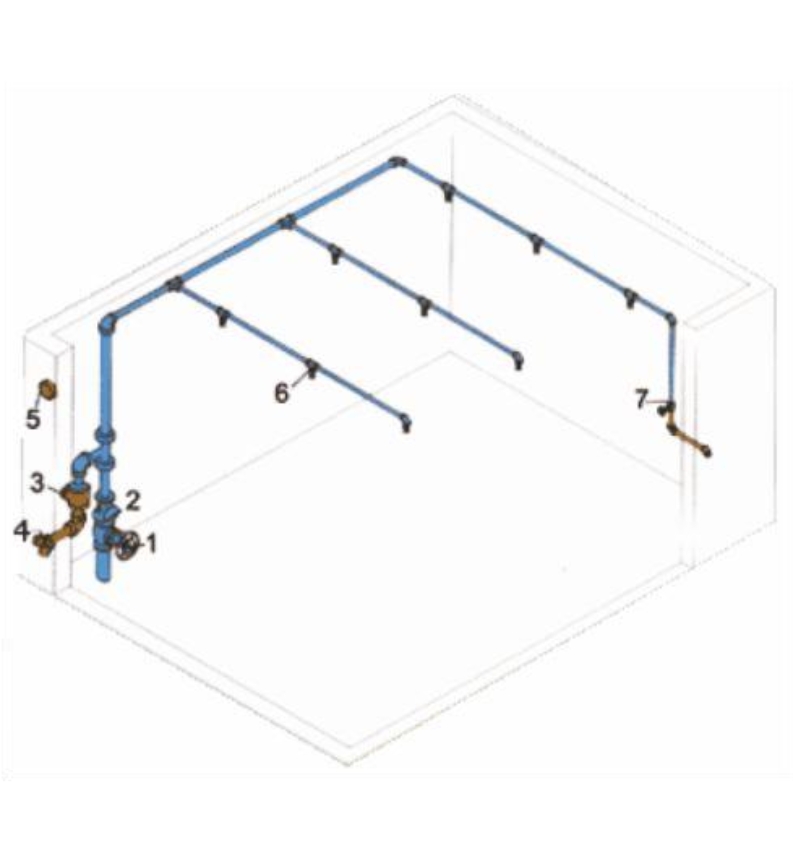

WET SPRINKLER SYSTEM

A sprinkler system employing automatic automatic sprinklers attached to a piping system containing water and connected to a water supply so that water discharges immediately from sprinklers opened by heat from a
fire.
1. Control Valve
2. Wet Alarm Check Valve
3. Check Valve
4. Water Supply
5. Water Motor Gong
6. Automatic Sprinkler
7. Test & Drain Valve

DRY SPRINKLER SYSTEM

A sprinkler system employing automatic sprinklers that are attached to a piping system containing air or nitrogen under pressure, the release of which (as from the opening of a sprinkler) permits the water pressure to open a valve known as a dry pipe valve, and the water then flows into the piping system and out the opened sprinklers.
1. Control Valve
2. Alarm Check Valve
3. Dry Pipe Valve
4. Check Valve
5. Water Supply
6. Water Motor Gong
7. Automatic Sprinkler
8. Test & Drain Valv

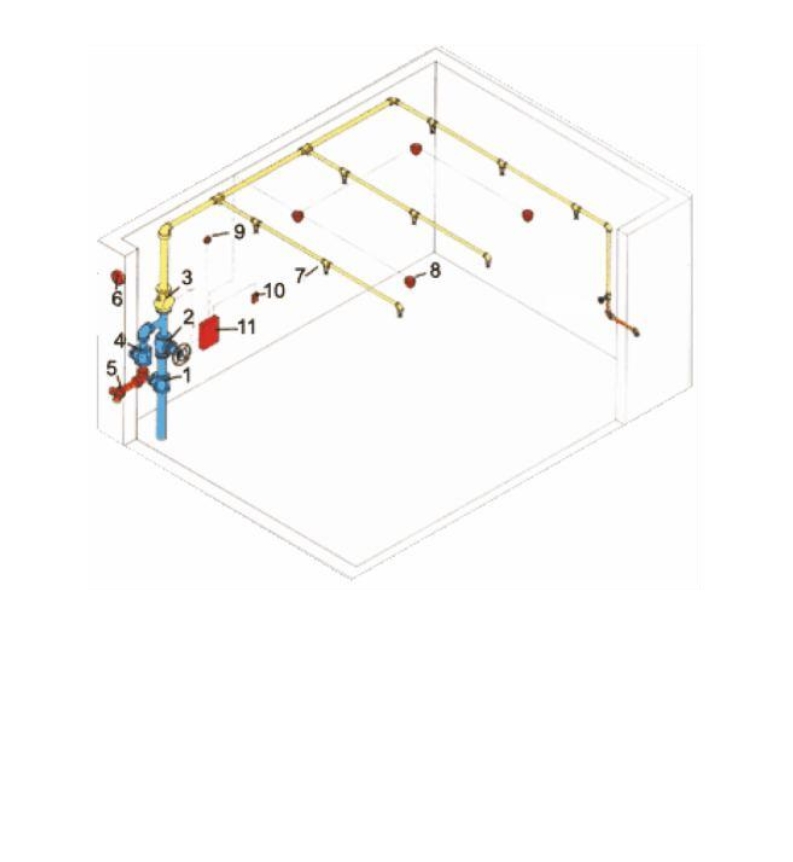

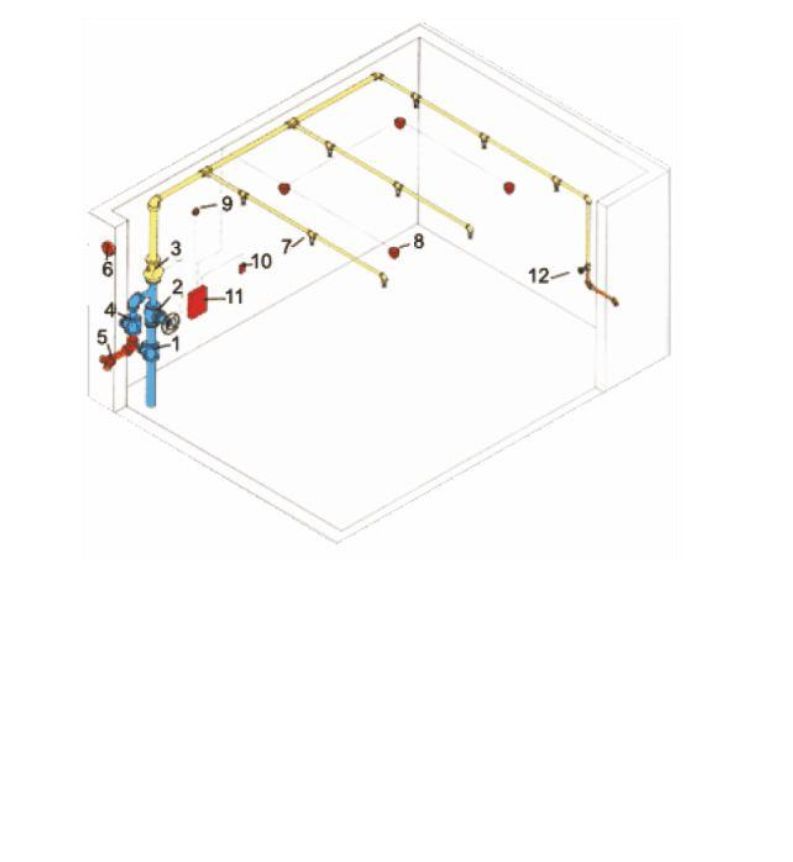

Pre-Action Sprinkler System – Advanced Fire Protection with Double Security

A sprinkler system employing automatic sprinklers that are attached to a piping system that contains air that might or might not be under pressure, with a supplemental detection system installed in the same areas as sprinklers.
1. Check Valve
2. Control Valve
3. Preaction Valve
4. Check Valve
5. Water Supply
6. Water Motor Gong
7. Sprinkler (closed)
8. Detector
9. Siren
10. Manual Release Station
11. Control Panel
12. Test & Drain Valve

DELUGE SPRINKLER SYSTEM

Our Deluge Sprinkler System is designed for high-hazard environments where rapid fire spread is a concern. This system features open sprinklers connected to a piping network that remains dry until activated. A separate detection system triggers the deluge valve, allowing water to flow through the pipes and discharge from all sprinklers simultaneously for fast and widespread fire suppression.

Key Features:

Full Area Coverage – All sprinklers activate at once for maximum fire suppression.
Ideal for High-Risk Areas – Perfect for chemical plants, aircraft hangars, and power stations.
Automatic Fire Detection – The system is activated by heat, smoke, or flame detectors.
Rapid Fire Control – Prevents fire from spreading in hazardous environments.
Highly Effective for Flammable Liquid Fires – Quickly douses fires involving volatile substances.
